We offers a wide range of pump control panel & pump control accessories for the pump control and protection market.
Product Details
|
Model |
HP |
kW |
MaxRated Current(A) |
|
L922 (AC 220V 50Hz) |
0.5-3 |
0.37-2.2 |
18A |
|
4-5.5 |
3-4 |
25A |
For customization, please contact the manufacturer
Start type: DOL(Direct on line)
Qty of controlled pump: Duplex pump
Protection function
- Over load protection
- Pump stalled protection
- Dry run protection with sensor free
- Under voltage protection
- Over voltage protection
- Repeat start protection
- Over temperature protection ★
- C1-W2 does not have this function ★
Application
- Control and protect universal pump
- Adopting liquid probe, float switch or pressure switch to control pump start and stop
- Applied for water supply by liquid level control through float switch or liquid probe
- Applied for booster by pressure control through pressure switch and pressure tank
- Applied for drainage by liquid level control through float switch or liquid probe
- Applied for sewage pump with piggy-back float switch
Control characteristic
Duplex pump control- Main pump / standby pump automatically alternate
- Main pump / standby pump automatically switch against malfunction
- Standby pump participates running if required
Other features
- Pump last five faults record displaying
- Pump accumulative running time displaying
- Pump shaft anti-rust
- Remote control panel(Optional)
- A/B Pump operation enable or disable function
- LCD screen displaying pump running status
- LCD screen locked function under auto state(Optional)
- Present RS485 port
- Memory function when power off & recovery
- Signal transmission distance up to 1000m
- Pump start time delay( Time settable)
- Pump stop time delay( Time settable)
- Push button calibration
- Overflow alarm for drainage application ★
- Present one passive dry contact point (BA port) ★
- C1-W2 and the C3-W2 don't have this function ★
Main installation data
- Working temperature: -25℃-- +55℃
- Working humidity: 20%--90%RH, no drips concreted
- Degree of protection: IP54
- Mounting type: Wall mounting
- Unit dimension (L x W x H): 294.5*240*115mm
Connectable sensors
Liquid probe (standard accessory) / Float switch / Pressure switch

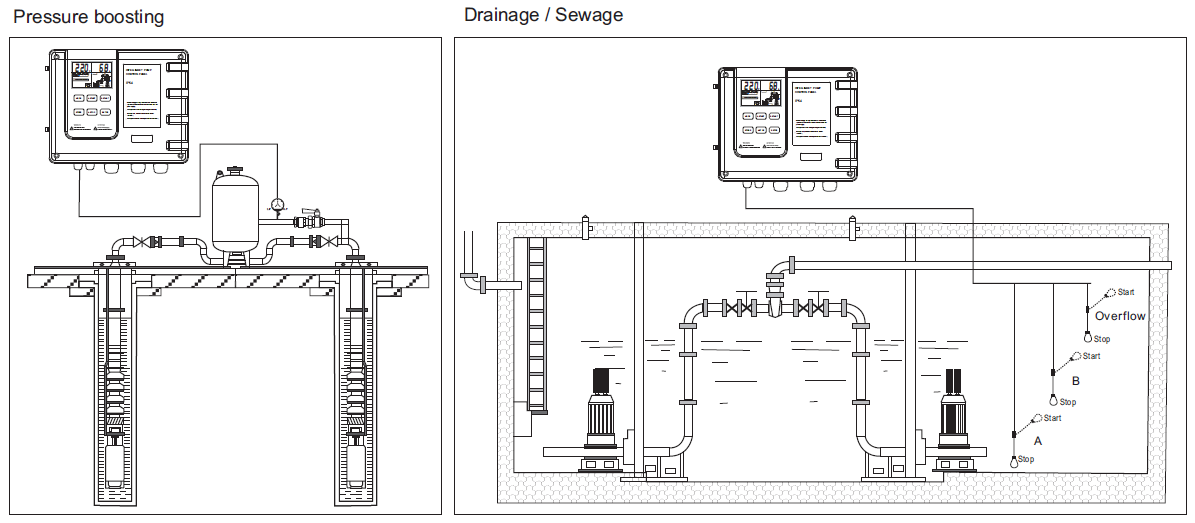

Typical Application Example
