We offers a wide range of pump control panel & pump control accessories for the pump control and protection market.
Product Details
|
Model |
HP |
kW |
MaxRated Current(A) |
|
MP-S1 Plus (AC 220V 50Hz) |
0.5-3 |
0.37-2.2 |
15A |
For customization, please contact the manufacturer
Start type: DOL(Direct on line)
Qty of controlled pump: Single pump
Protection function
- Over load protection
- Pump stalled protection
- Dry run protection with sensor free
- Under voltage protection
- Over voltage protection
Application & Control characteristic
- Control and protect universal pump
- Adopting liquid probe or float switch or pressure switch to control pump start and stop
- Applied for water supply by liquid level control through float switch or liquid probe
- Applied for booster by pressure control through pressure switch and pressure tank
- Applied for drainage by liquid level control through float switch or liquid probe
Other features
- Push button calibration
- Memory funcion when power off & recovery
- LCD screen displaying pump running status
- Signal transmission distance up to 200m
Main installation data
- Working temperature: -25℃-- +55℃
- Working humidity: 20%--90%RH, no drips concreted
- Degree of protection: IP22
- Mounting type: Wall mounting
- Unit dimension (L x W x H): 180 x 150 x 70 mm
Connectable sensors
Liquid probe (standard accessory) / Float switch / Pressure switch

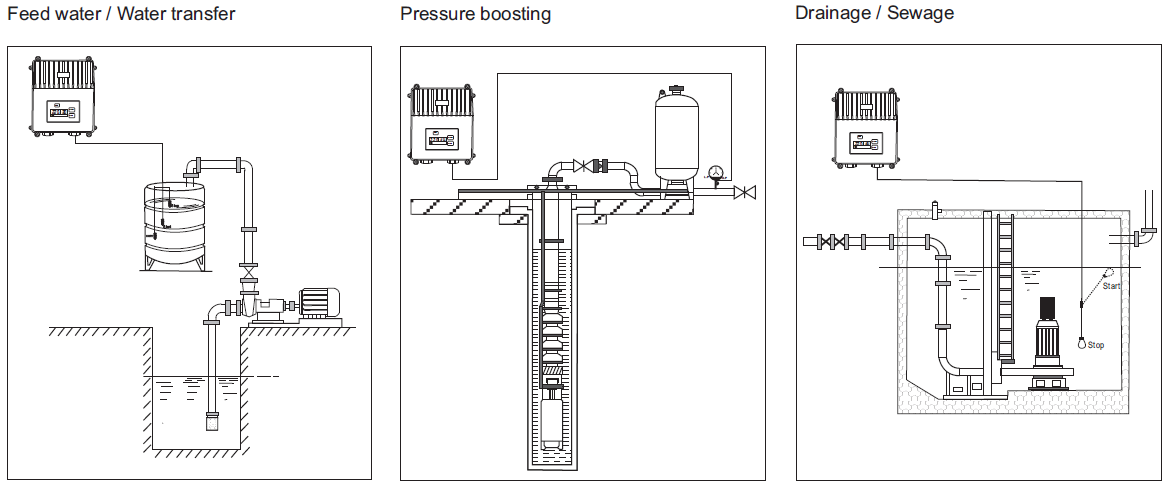

Typical Application Example
