SPLC-2
SPLC (Smart Programmable Logic Controller) is an easy to use, programmable controlling & protection device for pump factory, pump dealer / distributor etc. to assemble the duplex pump control cabinet by using SPLC, MCB, AC contactor, CT/CT kit and other electronic components.
Category：
keyword：
Clamp
Product Details
Main introduction
SPLC (Smart Programmable Logic Controller) is an easy to use, programmable controlling & protection device for pump factory, pump dealer / distributor etc. to assemble the duplex pump control cabinet by using SPLC, MCB, AC contactor, CT/CT kit and other electronic components.
Main technical data
- Start type
DOL(Direct on line) / STAR-DELTA / SOFT START / AUTO COUPLING
- Qty of controlled pump
Duplex pump
- Rated input voltage
AC380V/AC400V Three phase 50HZ/ 60HZ
(For customization, please contact the manufacturer.)
- Rated output power
4KW-260KW (5.5HP-350HP)
|
Max Motor Output at 380V 3Ph |
Motor Rated Current (A)Max |
CTKit /CT Configuration |
|
|
KW |
HP |
||
|
4-11 |
5.5-15 |
8-22 |
A type CTKit |
|
15-22 |
20-30 |
30-44 |
B typeCTKit |
|
30 |
40 |
60 |
C type CTKit+CT(150/5) |
|
40 |
55 |
80 |
C type CTKit+CT(200/5) |
|
50 |
70 |
100 |
C type CTKit+CT(250/5) |
|
55 |
75 |
110 |
C type CTKit+CT(300/5) |
|
65 |
90 |
130 |
C type CTKit+CT(350/5) |
|
75 |
100 |
150 |
C type CTKit+CT(400/5) |
|
90 |
120 |
180 |
C type CTKit+CT(450/5) |
|
100 |
135 |
200 |
C type CTKit+CT(500/5) |
|
110 |
150 |
220 |
C type CTKit+CT(550/5) |
|
115 |
155 |
230 |
C type CTKit+CT(600/5) |
|
125 |
170 |
250 |
C type CTKit+CT(650/5) |
|
Max Motor Output at 380V 3Ph |
Motor Rated Current (A)Max |
CTKit /CT Configuration |
|
|
KW |
HP |
||
|
135 |
180 |
270 |
C type CTKit+CT(700/5) |
|
150 |
200 |
300 |
C type CTKit+CT(750/5) |
|
165 |
220 |
330 |
C type CTKit+CT(800/5) |
|
175 |
235 |
350 |
C type CTKit+CT(850/5) |
|
180 |
240 |
360 |
C type CTKit+CT(900/5) |
|
190 |
255 |
380 |
C type CTKit+CT(950/5) |
|
200 |
270 |
400 |
C type CTKit+CT(1000/5) |
|
210 |
280 |
420 |
C type CTKit+CT(1050/5) |
|
220 |
295 |
440 |
C type CTKit+CT(1100/5) |
|
230 |
310 |
460 |
C type CTKit+CT(1150/5) |
|
240 |
320 |
480 |
C type CTKit+CT(1200/5) |
|
250 |
335 |
500 |
C type CTKit+CT(1250/5) |
|
260 |
350 |
520 |
C type CTKit+CT(1300/5) |
* If less than 4KW, please consult the manufacturer.
* For different input voltages, please consult the manufacturer.
Protection function
- Over load protection
- Pump stalled protection
- Dry run protection with sensor free
- Under voltage protection
- Over voltage protection
- Over temperature protection
- Leakage protection
- Phase unbalance protection
- Phase reversal protection
- Open phase protection
- Pump shaft anti-rust protection
Application &Control characteristic
- Control and protect duplex pump
- Using float switch, pressure switch or transmitter to control pump start and stop
- Applied for water supply by liquid level control through float switch or transmitter
- Applied for booster by pressure control through pressure switch or transmitter
- Applied for drainage by liquid level control through float switch or transmitter
Other features

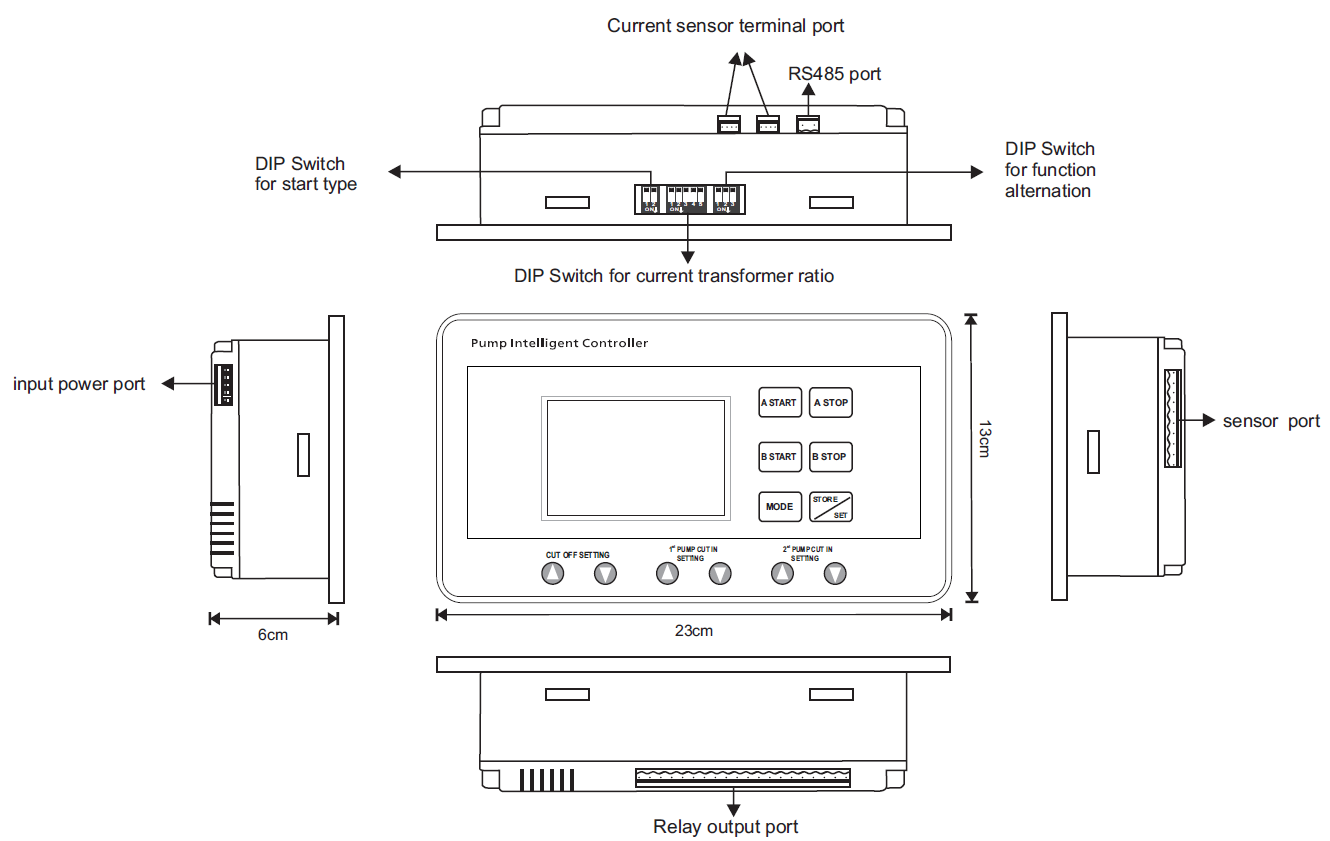

- Available DIP switch(5P) for different output power setting
- Available DIP switch(3P) for different application setting
- Available DIP switch(2P) for different starting type setting
- Pump last five faults record displaying
- Pump accumulative running time displaying
- Present one passive dry contact point (BA port)
- LCD screen locked function under auto state(Settable)
- LCD screen displaying pump running status
- Memory function when power off & recovery
- Signal transmission distance up to 20m(Analog Signal)
- Signal transmission distance up to 1000m(ON/OFF Signal)
- A/B Pump operation enable or disable function
- Present RS485 port
- WIFI module (optional)
- Remote control panel(Optional)
- Pump start time delay( Time settable)
- Pump stop time delay( Time settable)
- Overflow alarm for drainage application
